Back-Illuminated SMT Photodiodes

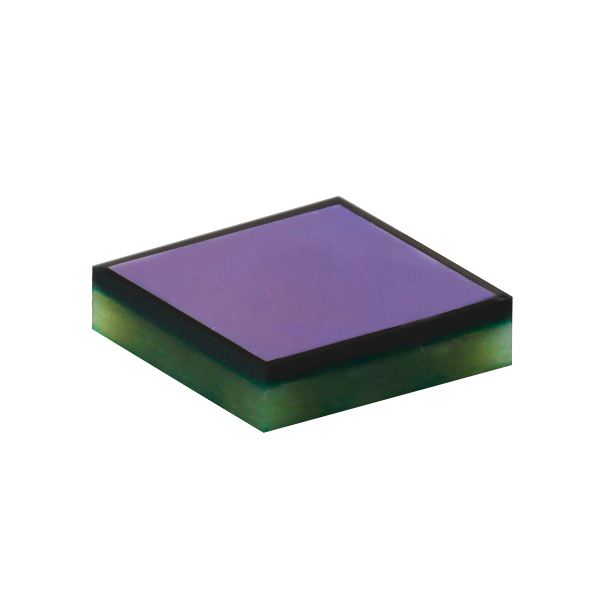

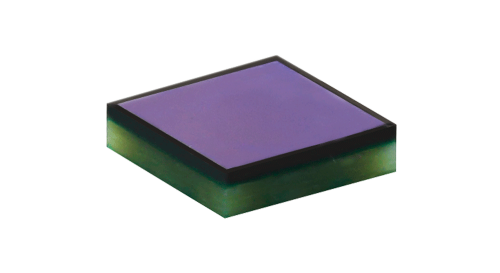

The (BI-SMT) series are single-channel back-illuminated silicon photodiodes designed to minimize dead areas at the edge of the device. Each device is designed on a package with dimensions close to the chip size itself. This design allows for multiple detectors to be arranged in a tiled format and offers ease of coupling to a scintillator if desired.

Image Datasheet Model Number Active Area Active Area Dimensions Peak Wavelength Responsivity Dark Current Shunt Resistance Capacitance Rise Time Package View
PDF 33BI-SMT 5.76 mm² 2.4 x 2.4 mm 920 nm 0.59 A/W 0.02 nA 500 MΩ 50 pF 10 µs SMT View
PDF 55BI-SMT 19.36 mm² 4.4 x 4.4 mm 920 nm 0.59 A/W 0.04 nA 250 MΩ 200 pF 20 µs SMT View
PDF 1010BI-SMT 88.36 mm² 9.4 x 9.4 mm 920 nm 0.59 A/W 0.16 nA 1 MΩ 900 pF 20 µs SMT View
