Blue Enhanced Photodiodes

The Silicon Blue series is utilized for applications requiring high sensitivity and moderate response speeds, with an additional sensitivity in the visible-blue region for the blue enhanced series. The spectral response ranges from 350 to 1100 nm, making the regular photovoltaic devices ideal for visible and near IR applications. These detectors have high shunt resistance and low noise, and exhibit long term stability. Unbiased operation of these detectors offers stability under wide temperature variations in DC or low speed applications. For high light levels (greater than 10mW/cm2), the Photoconductive Series detectors should be considered for better linearity.

Image Datasheet Model Number Active Area Responsivity Shunt Resistance Capacitance Rise Time Package View

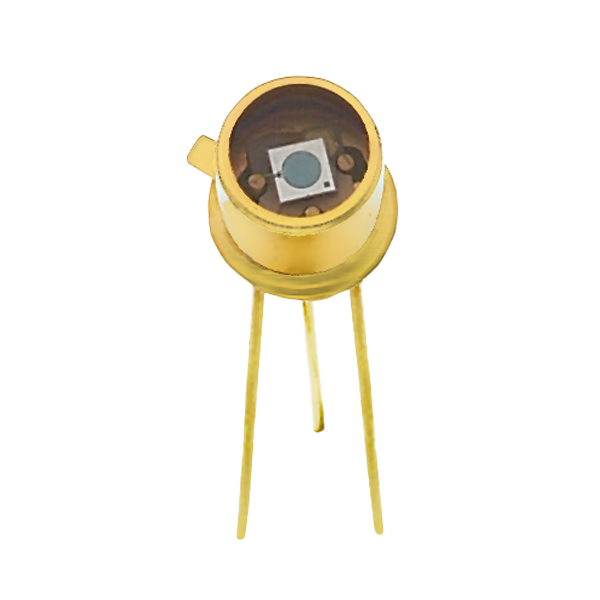

PDF OSD1-5T 1 mm² 0.21 A/W 250 GΩ 35 pF 7 ns TO-18 View
PDF OSD3-5T 3 mm² 0.21 A/W 100 GΩ 80 pF 9 ns TO-18 View

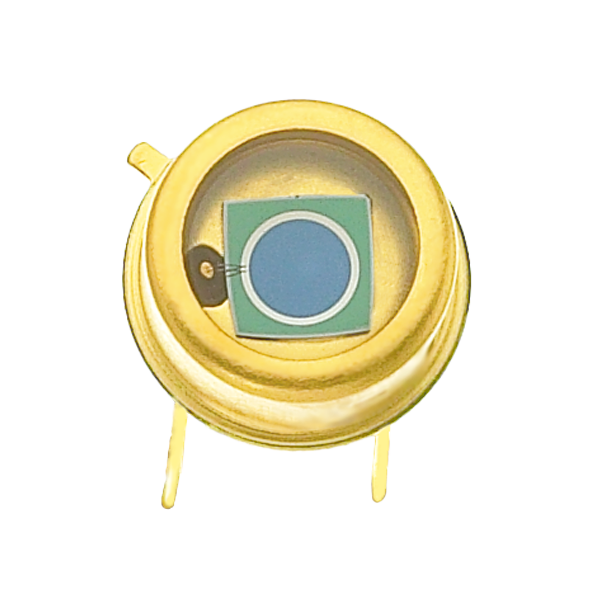

PDF OSD5-5T 5 mm² 0.21 A/W 100 GΩ 130 pF 9 ns TO-5 View
PDF OSD15-5T 15 mm² 0.21 A/W 50 GΩ 390 pF 12 ns TO-5 View

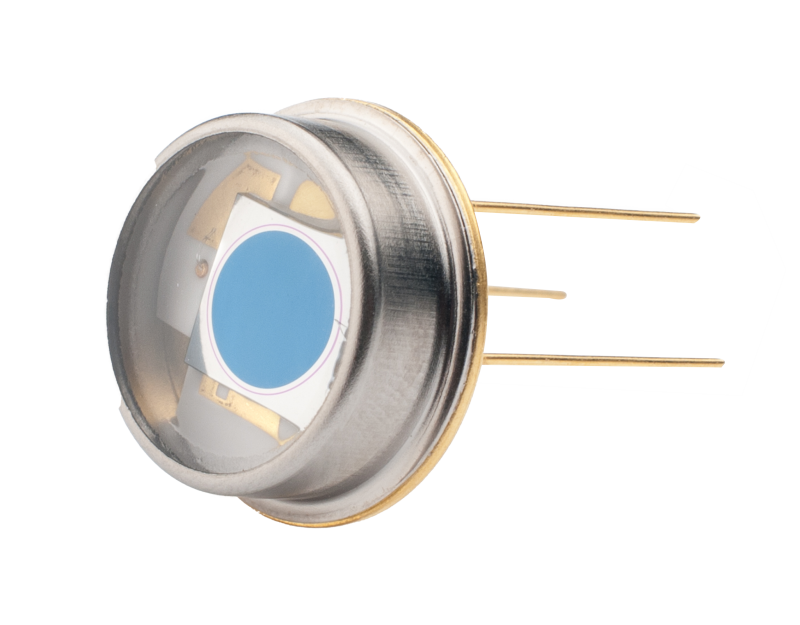

PDF OSD60-5T 62 mm² 0.21 A/W 3 GΩ 1800 pF 30 ns TO-8 View
PDF OSD100-5TA 100 mm² 0.21 A/W 2 GΩ 2500 pF 45 ns Special View

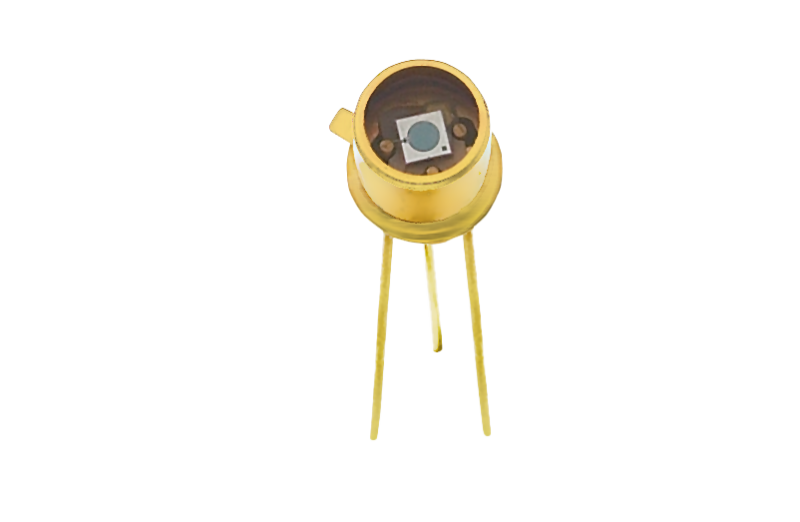

PDF PIN-040DP/SB 0.81 mm² 0.20 A/W 600 GΩ 60 pF 0.02 ns TO-18 View
PDF PIN-5DP/SB 5.1 mm² 0.20 A/W 150 GΩ 450 pF 0.2 ns TO-5 View

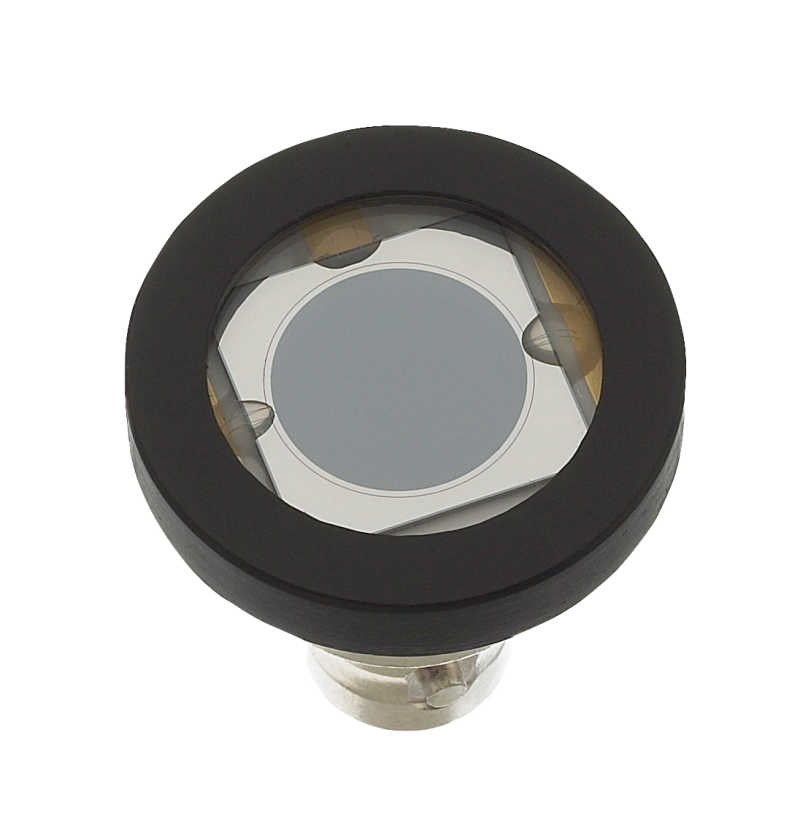

PDF PIN-10DP/SB 100 mm² 0.20 A/W 10 GΩ 8800 pF 2 ns BNC View

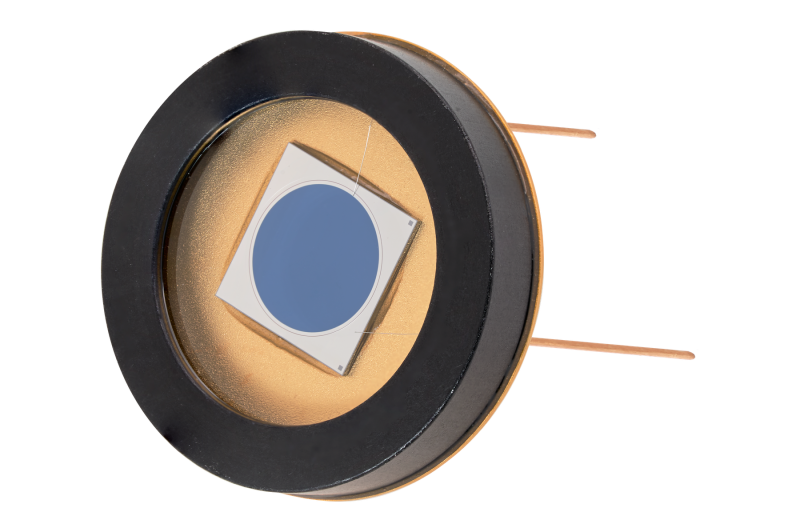

PDF PIN-10DPI/SB 100 mm² 0.20 A/W 10 GΩ 8800 pF 2 ns Metal View

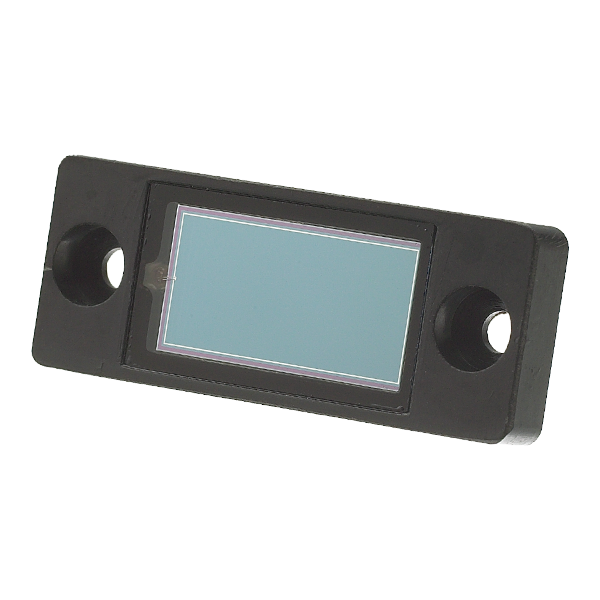

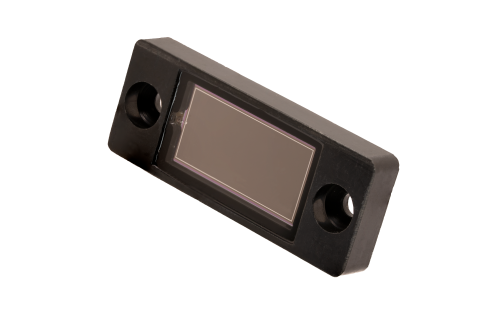

PDF PIN- 220DP/SB 200 mm² 0.20 A/W 5 GΩ 17000 pF 4 ns Plastic View
