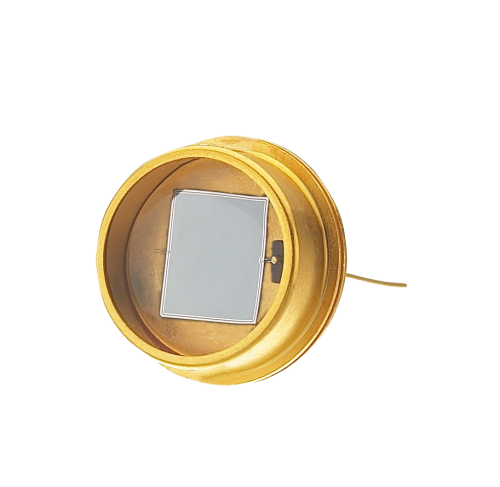

PIN-RD15

Large Active Area Photodiodes

The Large Active Area High Speed Detectors can be fully depleted to achieve the lowest possible junction capacitance for fast response times. They may be operated at a higher reverse voltage, up to the maximum allowable value, for achieving even faster response times in nano seconds. The high reverse bias at this point, increases the effective electric field across the junction, hence increasing the charge collection time in the depleted region. Note that this is achieved without the sacrifice for the high responsivity as well as active area.

Applications

Large Active Area High Speed Detectors

Laser Guided Missiles

Laser Warning

Laser Range Finder

Laser Alignment

Control Systems

Large Active Area Radiation Detectors

Electron Detection

Medical Instrumentation

High Energy Spectroscopy

Charged Particle Detection

High Energy Physics

Nuclear Physics

Features

Large Active Area High Speed Detectors

Large Active Area

Fully Depleteable

Fast Response

Ultra Low Dark Current

Low Capacitance

Large Active Area Radiation Detectors

Large Active Area

Scintillator Mountable

Fully Depleteable

Ultra Low Dark Current

Low Capacitance

High Breakdown Voltage
