High Speed Photodiodes

OSI Optoelectronics High Speed Silicon photodiode series are small area devices optimized for fast response time or High bandwith applications. The BPX-65 complements the rest of the high speed photodiode group with an industry standard.

The spectral range for these devices goes from 350 nm to 1100 nm. The responsivity and response time are optimized such that the HR series photodiodes exhibit a peak responsivity of 0.50 A/W at 800 nm and typical response times of a few hundred pico seconds at -5V.

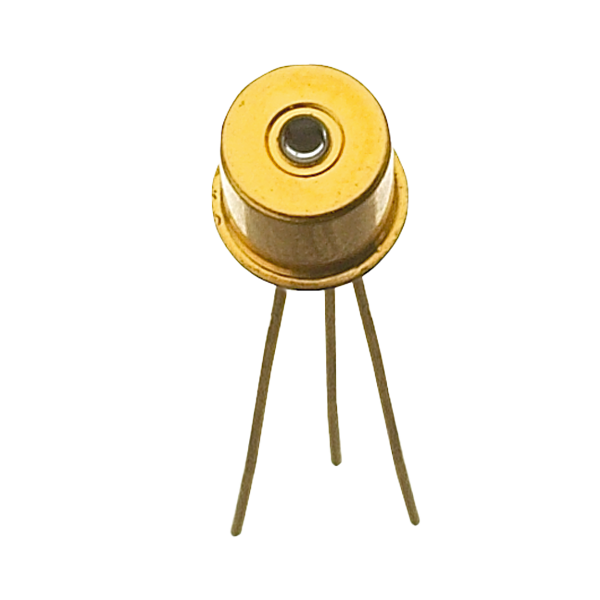

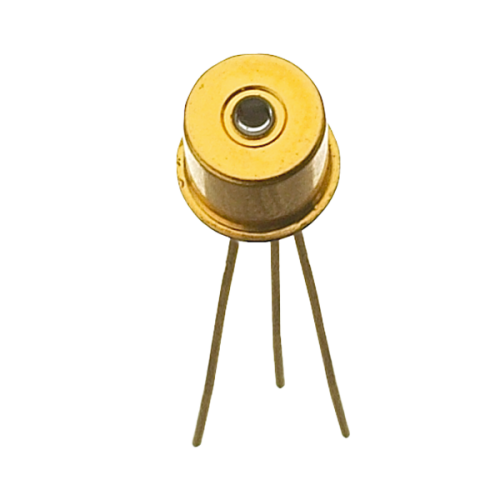

Image Datasheet Model Number Active Area Dimensions Responsivity @830nm (Typ) Dark Current Capacitance Rise Time Package View
PDF FCI-HR005 0.127 Φ mm 0.5 A/W 0.03 nA 0.8 pF 0.75 ns TO-18 View
PDF FCI-HR008 0.203 Φ mm 0.5 A/W 0.03 nA 0.8 pF 0.75 ns TO-18 View
PDF FCI-HR020 0.508 Φ mm 0.5 A/W 0.06 nA 1.8 pF 1 ns TO-18 View
PDF FCI-HR026 0.66 Φ mm 0.5 A/W 0.01 nA 2.6 pF 1.1 ns TO-18 View
PDF FCI-HR040 0.991 Φ mm 0.5 A/W 0.3 nA 4.9 pF 1.2 ns TO-18 View
PDF BPX-65 1.0 sq mm 0.5 A/W 0.5 nA 3 pF 2 ns TO-18 View
