Tetra-Lateral Position Sensing Detectors (PSD) One-Dimensional

Tetra-lateral position sensing detectors are manufactured with one single resistive layer for both one and two dimensional measurements. They feature a common anode and two cathodes for one dimensional position sensing or four cathodes for two dimensional position sensing.

These detectors are best when used in applications that require measurement over a wide spacial range. They offer high response uniformity, low dark current, and good position linearity over 64% of the sensing area.

Image Datasheet Model Number Active Area Active Area Dimensions Position Detector Error Inter-Electrode Resistance (min) Responsivity Dark Current Capacitance Rise Time Package View

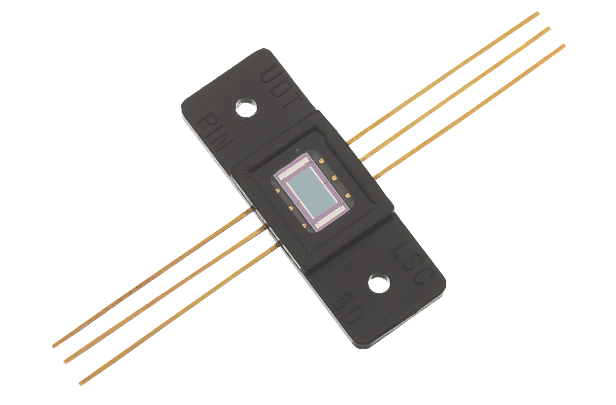

PDF LSC-5D 11.5 mm² 5.3 x 2.2 mm 0.04 µm 2 kΩ 0.42 A/W 10 nA 50 pF 0.25 µs Plastic Mold View

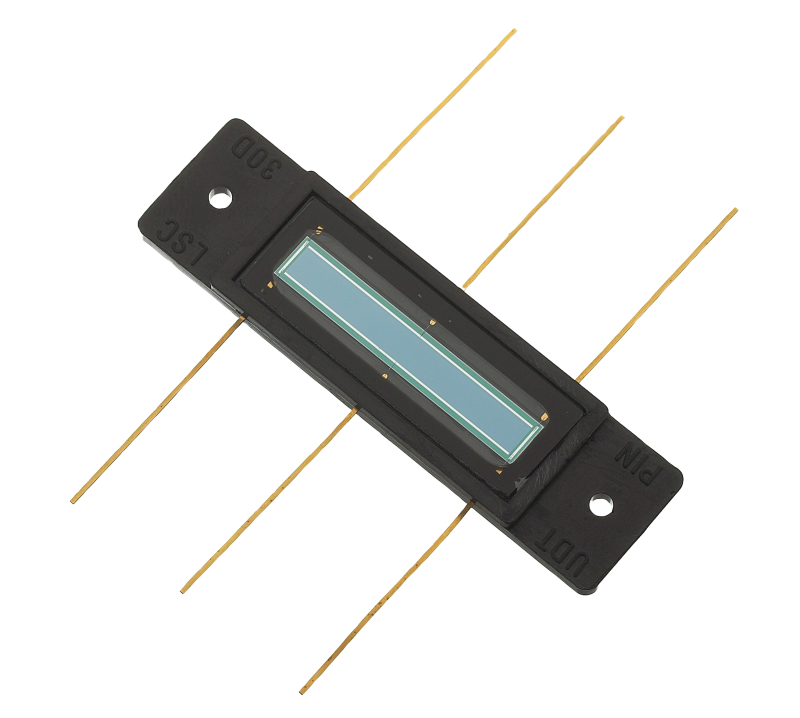

PDF LSC-30D 122 mm² 30 x 4.1 mm 0.24 µm 4 kΩ 0.42 A/W 25 nA 300 pF 3 µs Plastic Mold View
