Position Sensing Detectors (PSD)

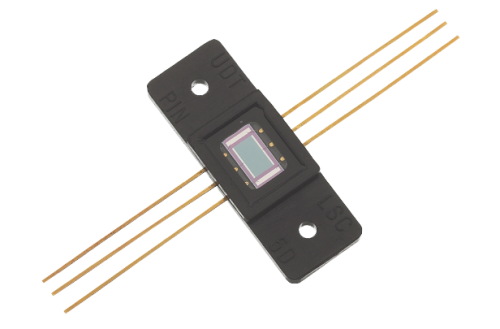

Tetra-lateral position sensing detectors are manufactured with one single resistive layer for both one and two dimensional measurements. They feature a common anode and two cathodes for one dimensional position sensing or four cathodes for two dimensional position sensing.

These detectors are best when used in applications that require measurement over a wide spacial range. They offer high response uniformity, low dark current, and good position linearity over 64% of the sensing area.


Tool Alignment and Control

Leveling Measurements

Angular Measurements

3 Dimensional Vision

Position Measuring


Single Resistivity Layer

High Speed Response

High Dynamic Range

Very High Resolution

Spot Size & Shape Independence
